Centralised Vacuum Systems - Components, Food Industry

Tubing System Food

  • Acid proof – can be used in more applications
  • Polished G320 and inside Ra 0,8μm
  • For food industry
  • Packaging that keeps the pipes clean until mounting
Select model
  • Model Part no
    Request
  • Straight Pipe Ø50 44228
    Request
  • Straight Pipe Ø50 44227
    Request
  • Straight Pipe Ø108 44226
    Request
  • Bend Ø50_45° 44308
    Request
  • Bend Ø50_90° 44311
    Request
  • Bend Ø76_45° 44312
    Request
  • Bend Ø76_90° 44313
    Request
  • Bend Ø108_45° 44306
    Request
  • Bend Ø108_90° 44307
    Request
  • Branch Pipe Ø50/50 44848
    Request
  • Branch Pipe Ø76/50 44139
    Request
  • Branch Pipe Ø76/76 44231
    Request
  • Branch Pipe Ø108/76 44258
    Request
  • Branch Pipe Ø108/108 44247
    Request
  • Y-Pipe Ø50 44225
    Request
  • Y-Pipe Ø76 44316
    Request
  • Y-Pipe Ø108 44224
    Request
  • Cone Ø76/50 44318
    Request
  • Cone Ø108/76 44319
    Request

Dustcontrol’s stainless steel pipe system consists of components in acidproof material 1.4404, manufactured according to EN 10357 and meets the requirements according to EN 1935/2004 and FDA, CRF 21.





Technical Data
44228, 44227, 44226 Pipe
Dustcontrol Tubing System Tubing 3340 Etaltera

Straight Pipe

Description

Part no

Ø (mm)

l (mm)

t (mm)

m (kg)

Ø50

44228

50

4000

1

5

Ø76

44227

76,1

4000

1,2

9

Ø108

44226

108

4000

1,5

16

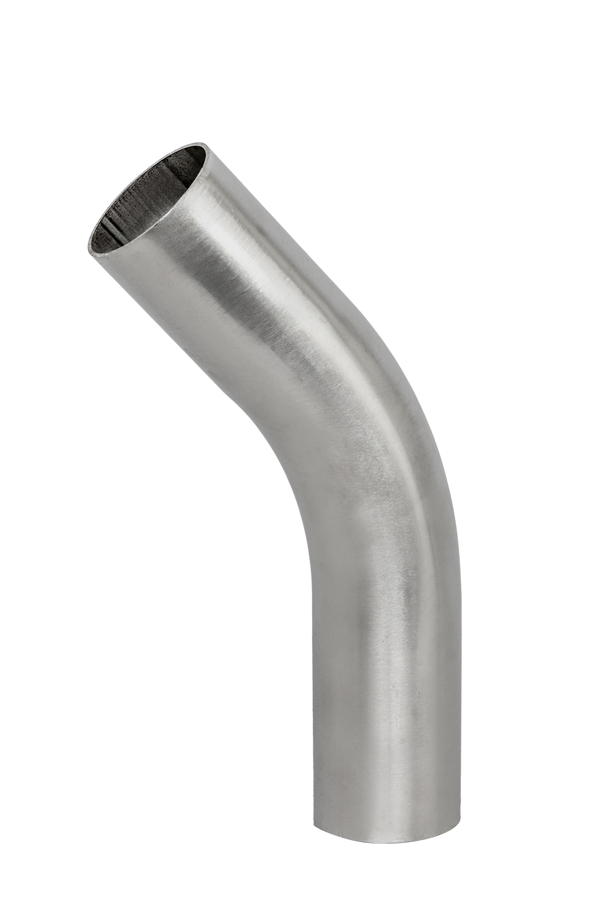

44308, 44312, 44306 Bends 45 Dustcontrol Tubing System Stainless Steel Bend 45 44308 Etaltera

Bend

Description

Part no

Ø (mm)

r (mm)

t (mm)

b (mm)

h (mm)

m (kg)

Ø50_45°

44308

50,8

120

1

75

231

0,3

Ø50_90°

44311

50,8

120

1

75

220

0,4

Ø76_45°

44312

76,1

160

1,5

180

447

1,4

Ø76_90°

44313

76,1

160

1,5

180

378

1,7

Ø108_45°

44306

108

162

2

163

431

2,4

Ø108_90°

44307

108

162

2

163

379

3,1

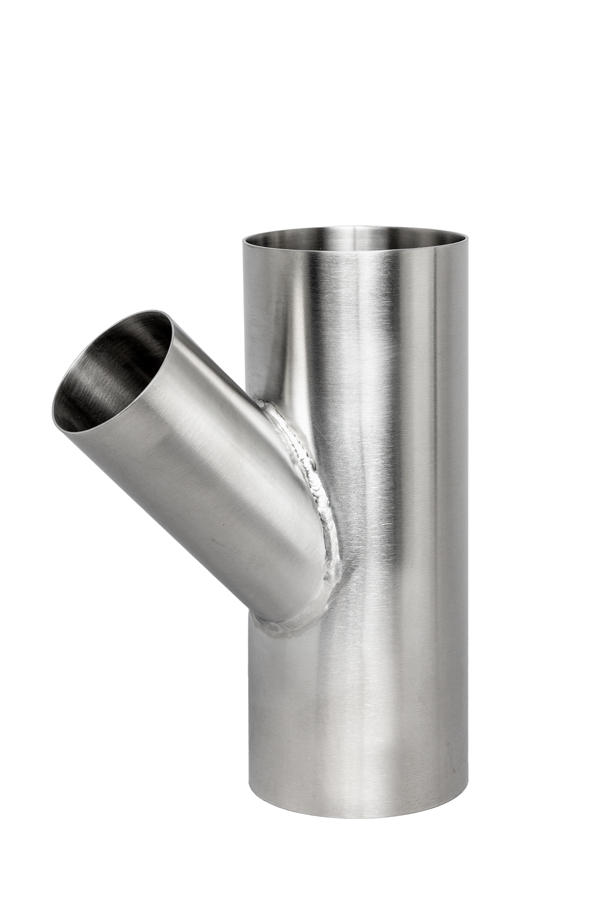

44848, 44139, 44231, 44258, 44247 Branch Pipe Dustcontrol Tubing System Branch Pipe Reinforced Spiro 3131 Etaltera

Branch Pipe

Description

Part no

α

Ø1 (mm)

Ø2 (mm)

t (mm)

l (mm)

m (kg)

Ø 50/50

44848

45°

50

50

1

190

0,3

Ø 76/50

44139

45°

76,1

50

1,2

190

0,5

Ø 76/76

44231

45°

76,1

76,1

1,2

225

0,7

Ø 108/76

44258

45°

108

76,1

1,5

230

1,1

Ø 108/108

44247

45°

108

108

1,5

270

1,5

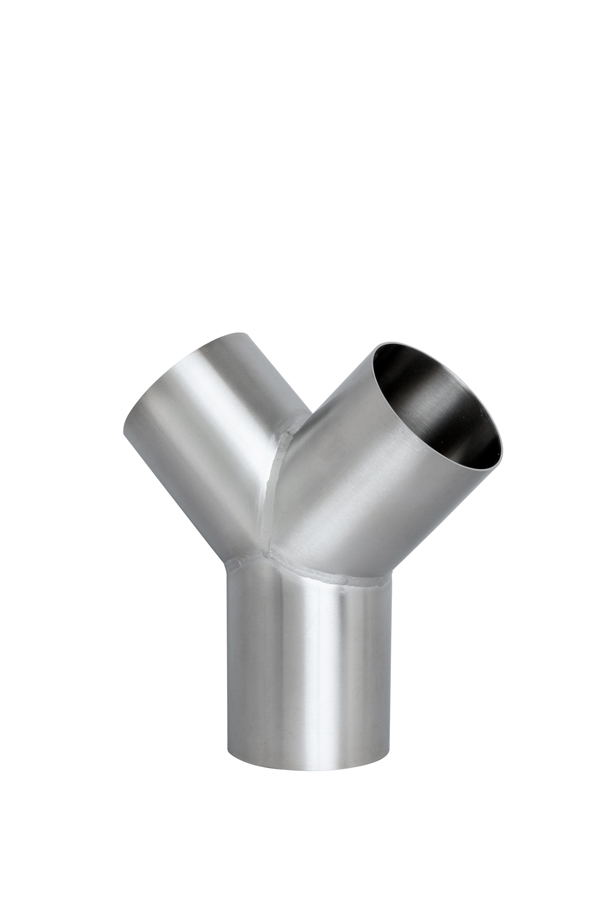

44225, 44316, 44224 Y Pipe Dustcontrol Tubing System Y Pipe Steel 3324 Etaltera

Y-Pipe

Description

Part no

α

Ø (mm)

l (mm)

t (mm)

h (mm)

m (kg)

Ø 50

44225

90°

50

151

1

173

0,3

Ø 76

44316

90°

76,1

188

1,2

194

0,6

Ø108

44224

90°

108

233

1,5

226

1,1

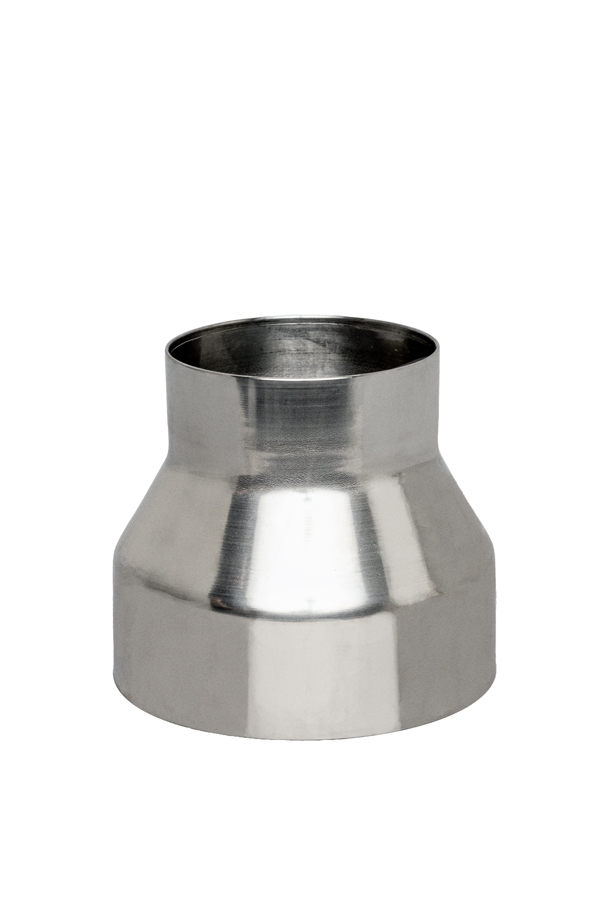

44308, 44312, 44306 Bends 45 Dustcontrol Tubing System Cone 3197 Etaltera

Cone

Description

Part no

Ø1 (mm)

Ø2 (mm)

l (mm)

t (mm)

m (kg)

76/50

44318

76,1

50

95

1

0,2

108/76

44319

108

76,1

93

1,2

0,3
